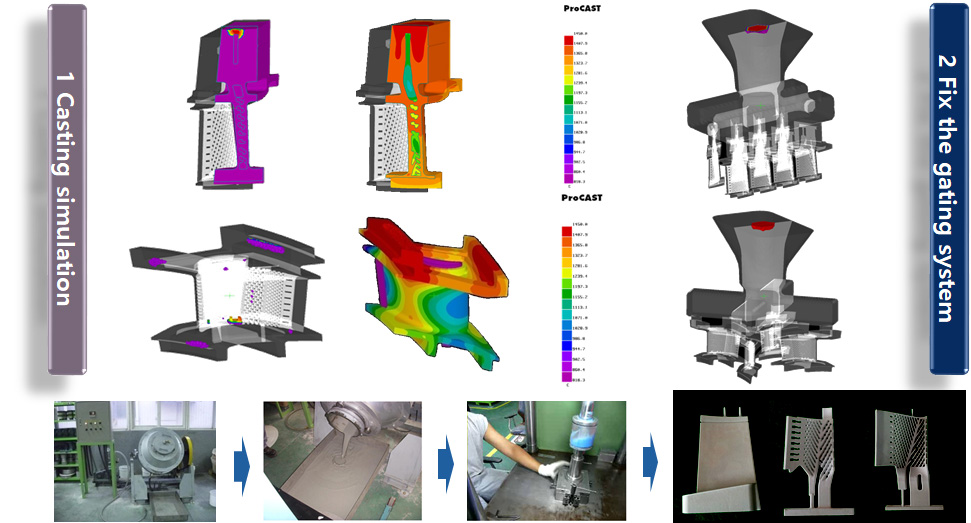

Ceramic Core Methode

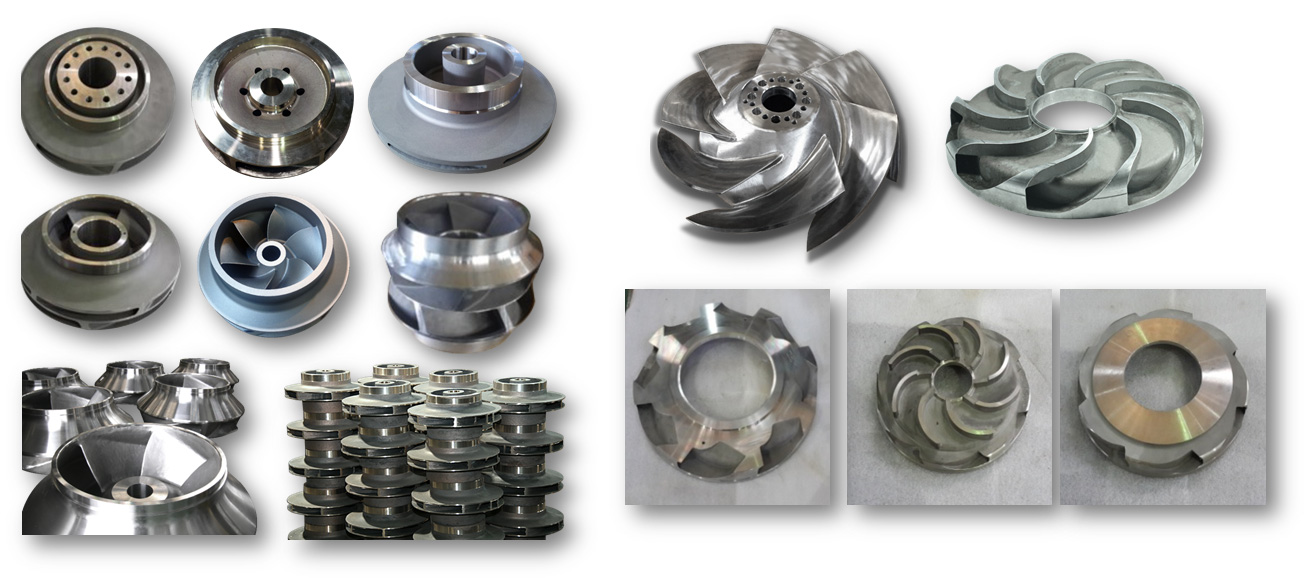

Impeller・ Diffuser
Casting Material
| JIS | ASTM | EN | |
|---|---|---|---|
| Carbon steel | SCPH2, SCPL1 | WCB, LCB | 1.0619 |
| Austenitic Stainless Steel | SCS13, SCS14, SCS16 | CF8,CF8M,CF3M | 1.4408, 1.4308 |
| Martensitic Stainless Steel | SCS1, SCS2, SCS6 | CA15, CA6NM | 1.4085, 1.4027 |
| (Super)Duplex Stainless Steel | SCS11 | Gr. 1B, Gr. 3A, Gr. 5A, Gr. 6A | 1.4469, 1.4517 |
| Precipitation Hardenable Stainless Steel | SCS24 | CB7Cu-1 | 1.4540 |
| Special Material | FCDA-NiCr20-2 | D-2 | GJSA-XNiCr20-2 |
| ASTM A494 CU5MCUC/Incoloy 825(Nickel Alloy Steel) ASTM A494 CW12MW/Hastelloy-C(Nickel Alloy Steel) ASTM A436 Type 2/Ni-Resist ( Austenitic Gray Cast Iron ) |
|||
Manufacturing facility
| Facility | Spec | Q’ty |
|---|---|---|

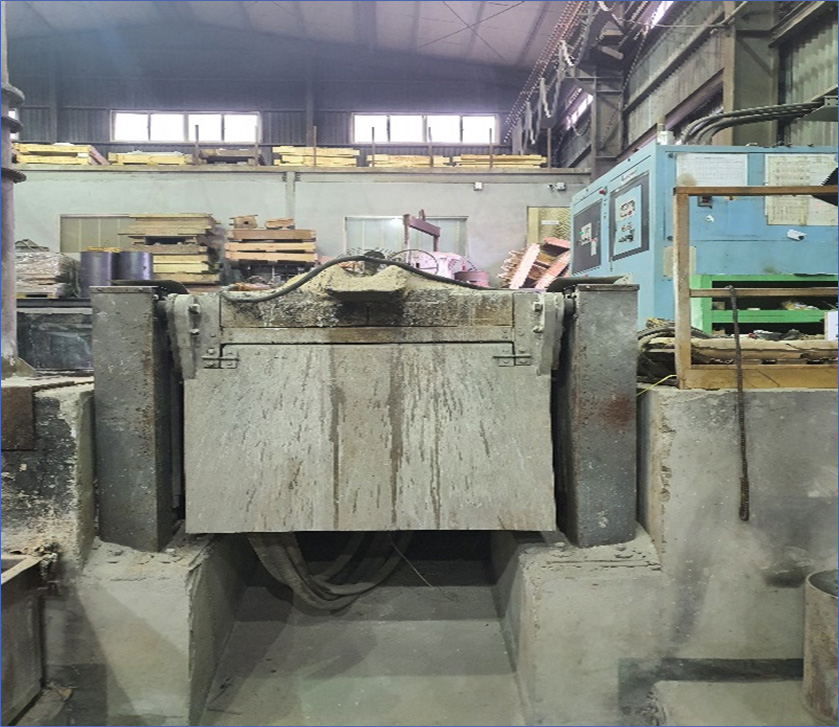

| INDUCTTION FURNACE | 700kg/1000kg (1S2B) | 1 |

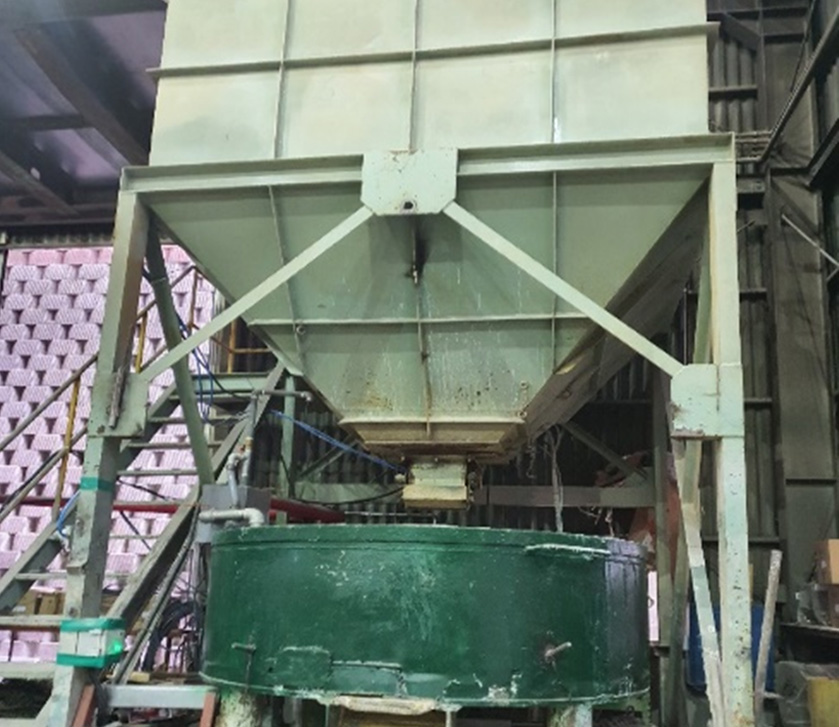

| SAND MIXER | 1,000KG/BATCH | 1 |

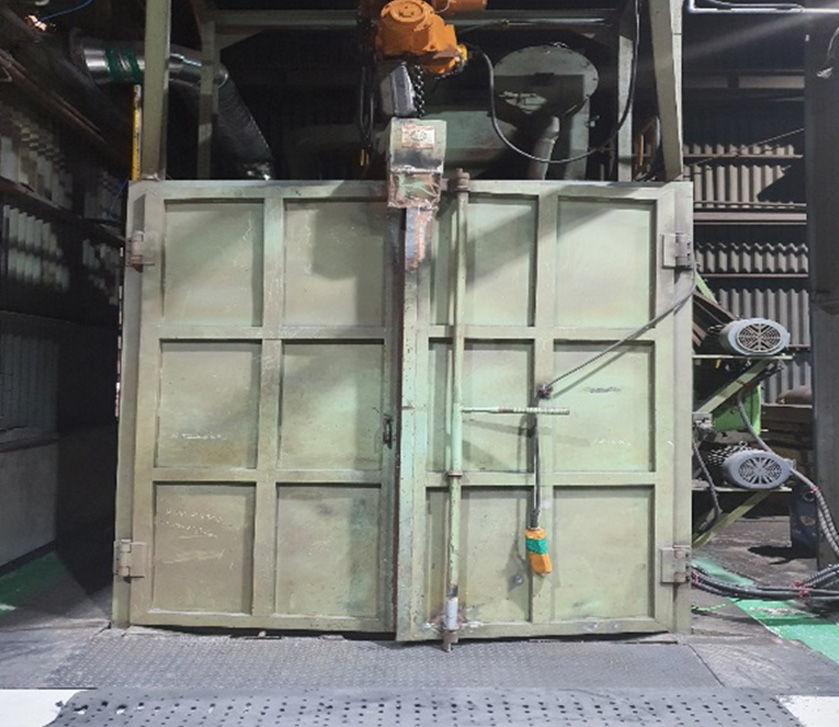

| SHOT BLAST | HANGER TYPE DIA2,000 X2,000 |
1 |
| SANDING MC | 750x750x1200 | 1 |

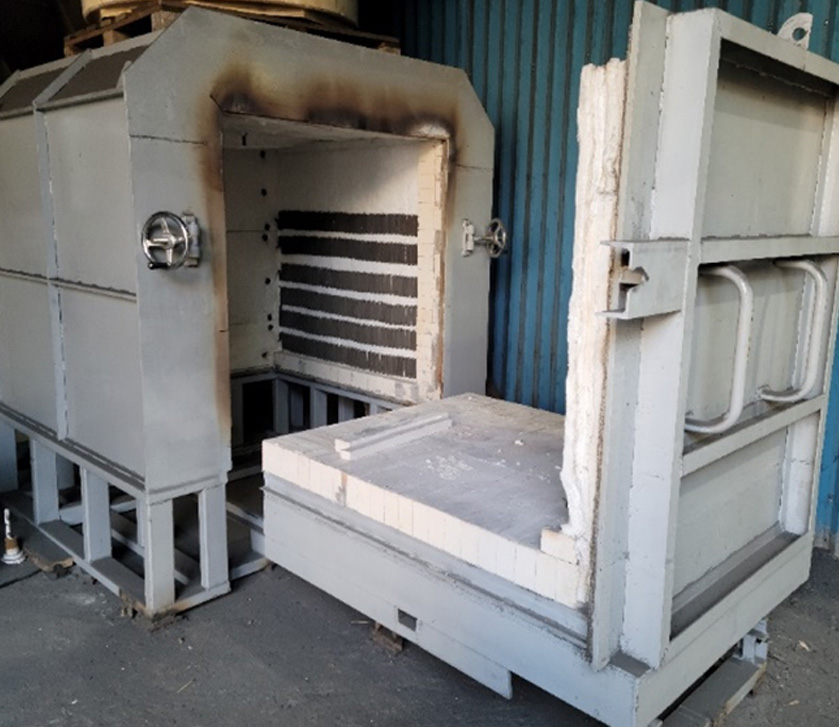

| SINTERING FURNACE | 12000x1200x1200 80Kw | 1 |
| HIGH PRESSURE WASHER | 500 bar | 1 |
| VACCUM DEGASSER | Table, Vaccum pump | 1 |
| CENTRIFUGAL INJECTOR | 800 dia, 5hp | 1 |
| BINDER MIXER | EX. Air Motor | 1 |
Measurement Equipment
| Equipment | Spec | Q’ty |
|---|---|---|

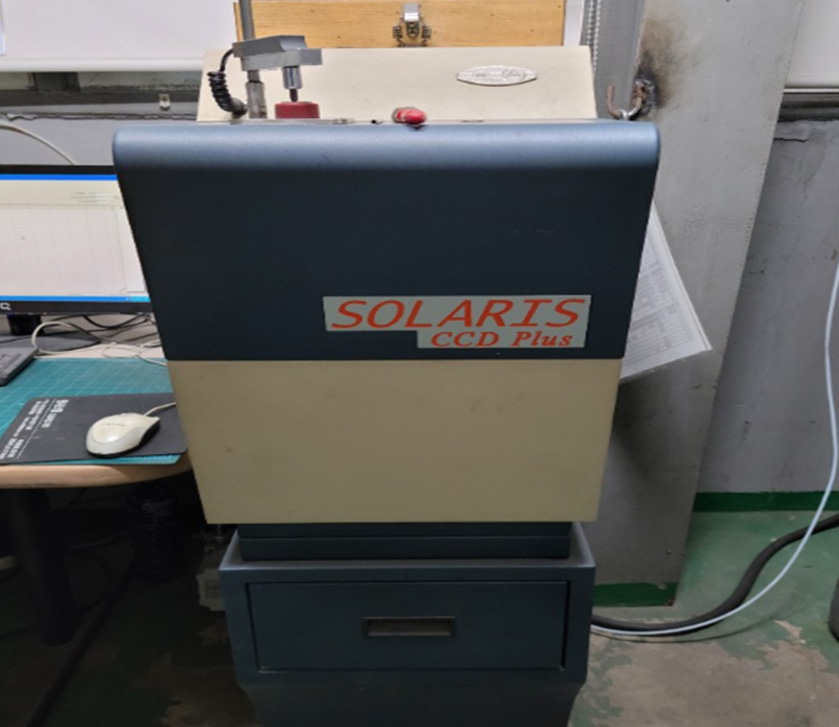

| Spectrometer | 36 ch | 1 |

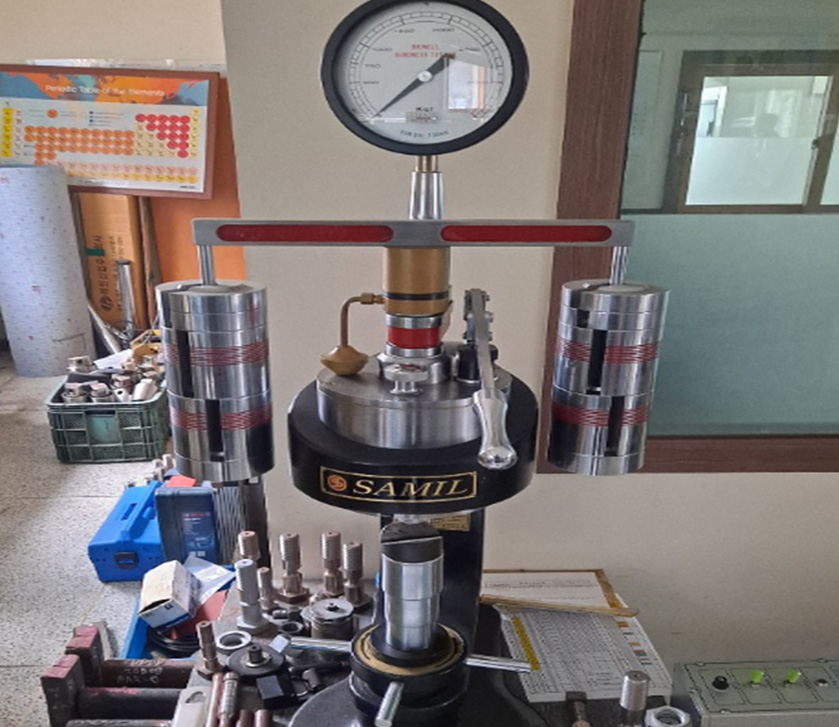

| Brinell Hardness | 500~3000 kgf | 1 |

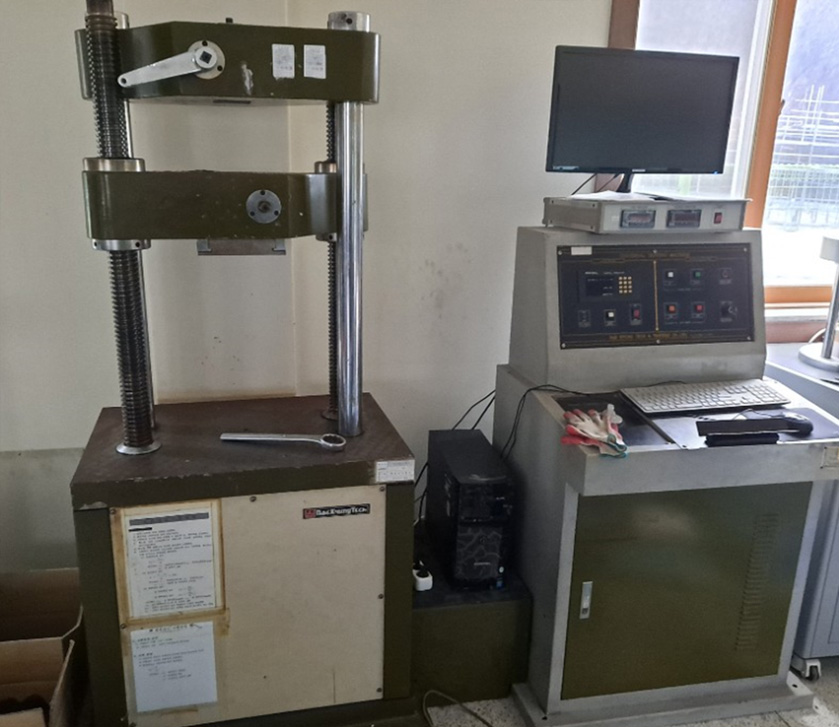

| Universal Testing Machine | 300kN | 1 |

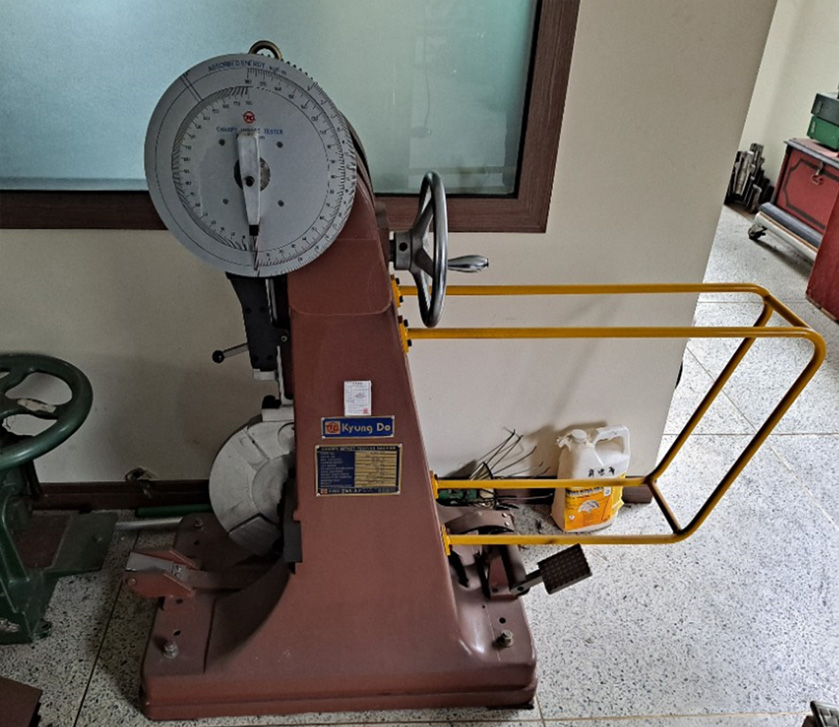

| Charpy Impact Tester | MAX. 30Kg-m | 1 |
| Interchangable Outside Micrometer | 0~150 mm | 1 |
| Interchangable Outside Micrometer | 125~150 mm | 1 |
| Interchangable Outside Micrometer | 150~300 mm | 1 |
| Interchangable Outside Micrometer | 300~400 mm | 1 |
| Interchangable Outside Micrometer | 400~500 mm | 1 |
| Interchangable Outside Micrometer | 600~700 mm | 1 |
| Bore Gauge | 18~35 mm | 1 |
| Bore Gauge | 35~60 mm | 1 |
| Bore Gauge | 50~150 mm | 1 |
| Bore Gauge | 250~400 mm | 1 |
| Vernier Calipers | 0~300 mm | 1 |
| Vernier Calipers | 0~600 mm | 1 |
| Vernier Calipers | 0~1000 mm | 1 |
| Digimatic Calipers | 0~300 mm | 1 |
| Digimatic Calipers | 0~200 mm | 1 |
| Digimatic Depth Gauge | 0~300 mm | 1 |
| Height Gauge | 0~600 mm | 1 |
